Veeam Replication Job Creation

Updated 2 weeks ago by Brian Banaszynski

To create a replication job utilizing the DSM Veaam Cloud Connect Service Provider established in the previous steps, perform the following actions.

  1. Launch Veeam Backup & Replication Console from the Client (Source) location:

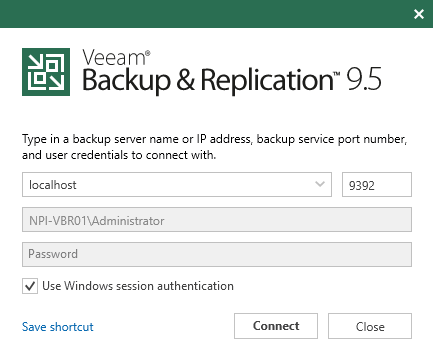

  2. Log into Veeam Backup & Replication Console with the appropriate credentials:

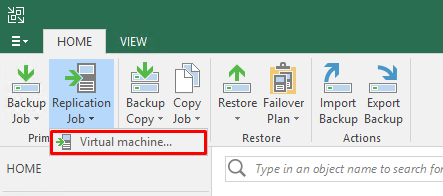

  3. Select Replication Job > Virtual machine… from the top menu bar:

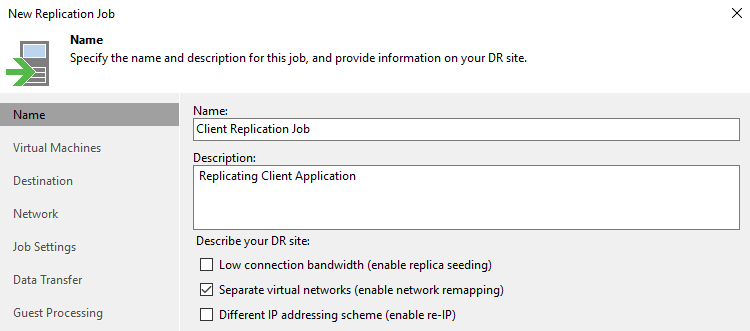

  4. Enter the following for the replication job:
    • Name: Name for job, example…(File Server Replication Job)
    • Description: Long description for the job
    • Describe you DR Site:
      • Low connection bandwidth (enable replica seeding)
      • Separate virtual networks (enable network remapping)
      • Different IP addressing scheme (enable re-IP)

    Click Next >

    In this example the only configuration change we will make is to remap VM networking.

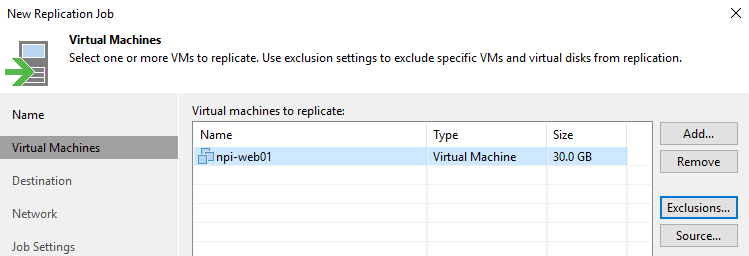

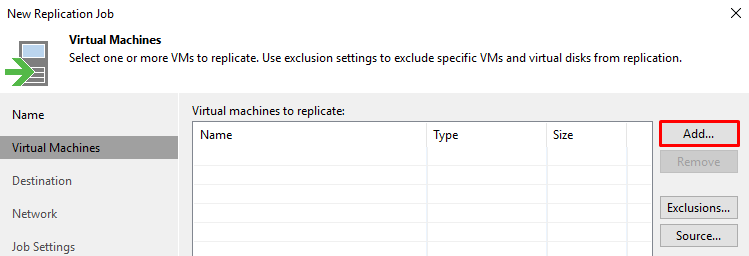

  5. Click Add to select a VM to add to the replication job:

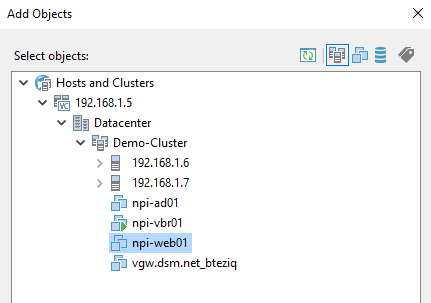

  6. Select the VM(s) that you want to add to the replication job:
  7. Click Add

  8. Apply any exclusions required.
  9. Click Next >

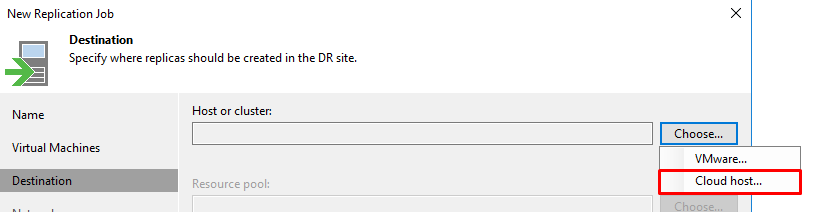

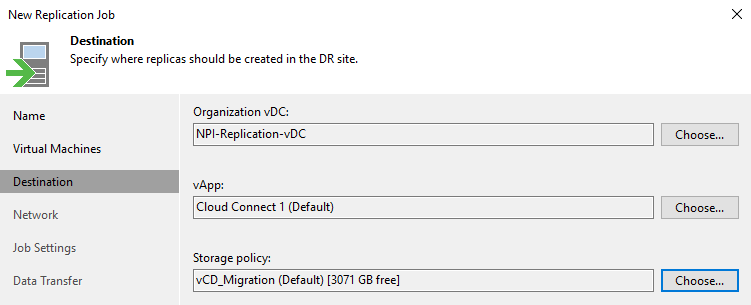

  10. Enter the destination information for the replication job by clicking Choose… > Cloud Host…

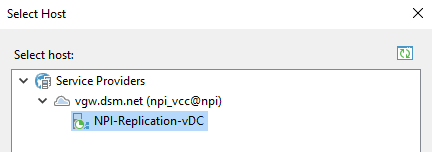

  11. Select the Client Replication VCD listed under the DSM Service Provider.
  12. Click OK
  13. It should default to the appropriate vApp and Storage Policy. If you need assistance with a more complex vApp configuration, reach out to your assigned Cloud Engineer for assistance.
  14. Click Next >

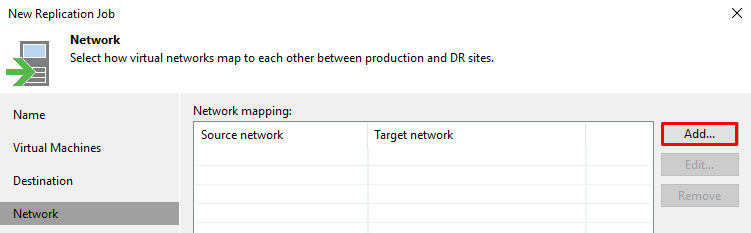

  15. Map the source VM network to the Cloud VM network.
  16. Click Add...

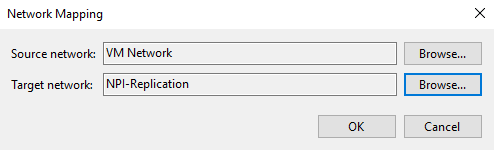

  17. Assign both the Source network and Target network to the appropriate VM network mapping. This will be unique to your implementation.
  18. Click Browse...to select Source and Target
    Click OK

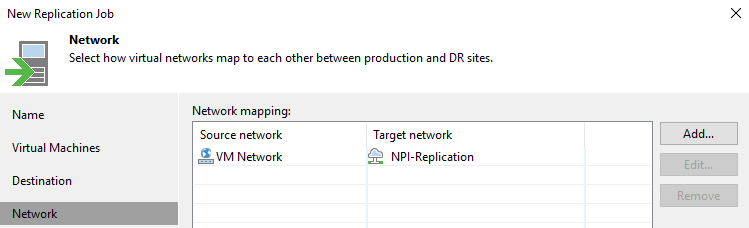

  19. Verify the Network mapping is correct and click Next >

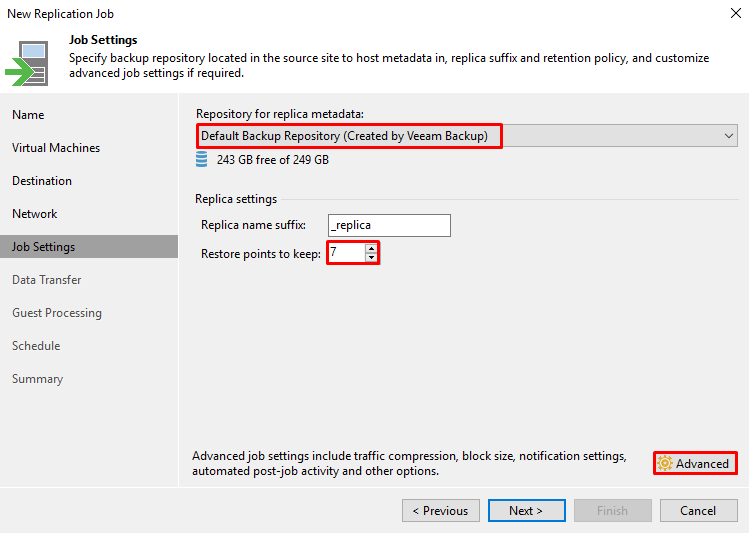

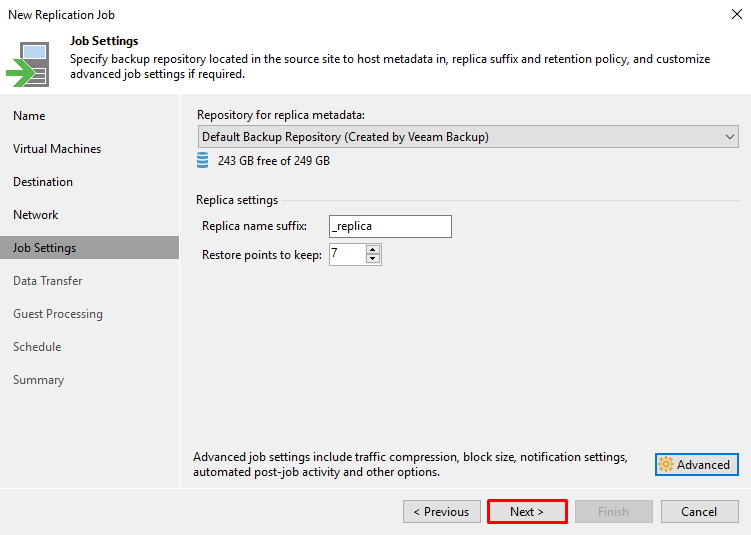

  20. Modify the Repository for replica metadata to suite client needs.
  21. Adjust the number of restore points to keep.
    Click Advanced

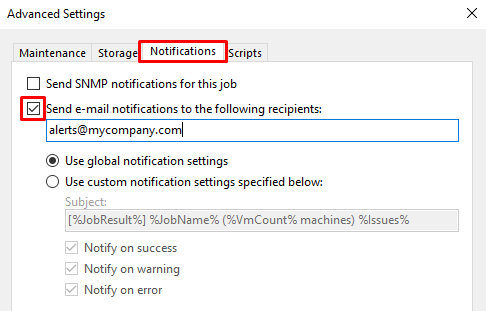

  22. Select Notification tab.
  23. Select Send e-mail notification to the following recipients:
    • Enter a monitored email address so Replication Job notifications can be reviewed.
    Click OK
    E-mail Notifications must be enabled globally, available under Menu > General Options.
  24. After configuring Advanced Job Settings, click Next >

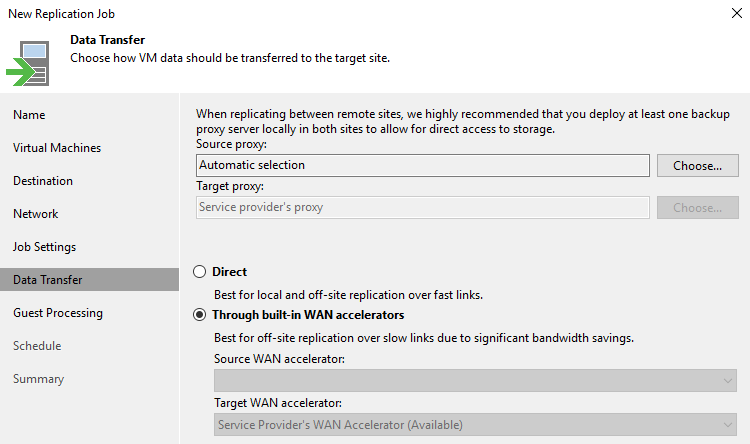

  25. Specify data transfer settings.
  26. Select a source proxy if automatic selection is not preferred.
    Select Direct if client source side does not have WAN accelerator(s) deployed.
    Select Through built-in WAN accelerators if WAN accelerators are deployed on client source side and choose WAN accelerator.
    Click Next >
    WAN Acceleration is only available in Veeam Backup & Replication Enterprise Plus Edition

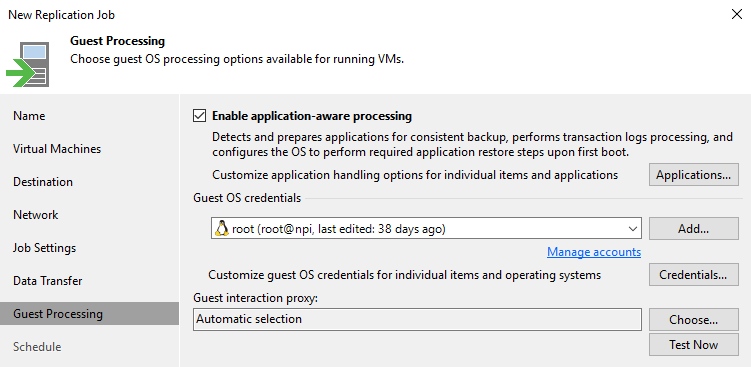

  27. Select Enable application-aware processing if VM’s being replicated require application-consistent backups.
  28. Provide Guest OS credentials (if applicable)
    Click Next >
    If your backup job is configured to be application-aware then the replication job should typically also be configured to be application-aware.

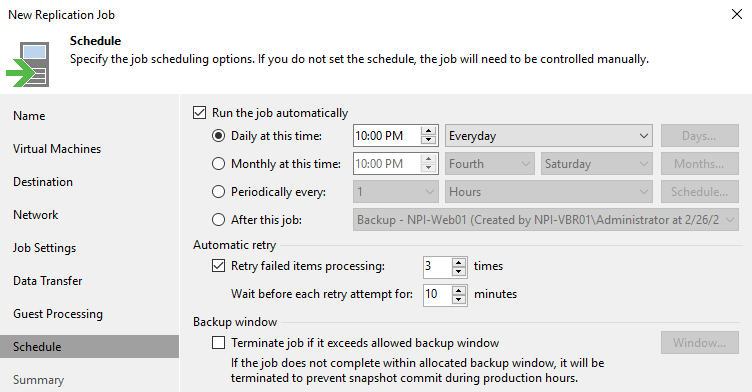

  29. Configure an appropriate schedule for the replication job.
  30. Click Apply

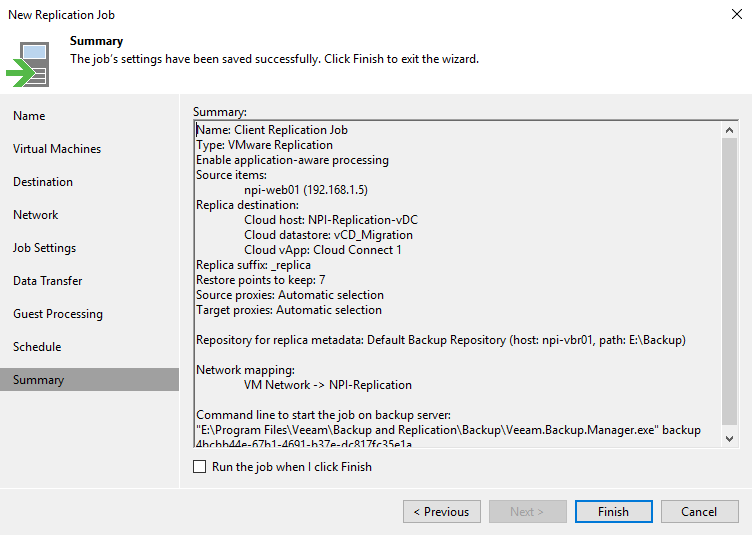

  31. Review the summary information and verify the settings are correct.
  32. Click Finish
